CNC Milling Service

Upload your 2D, CAD, or CAM files to start processing your milled precision parts and get them delivered within as few as 1 day.

Home > CNC Machining > CNC Milling Service

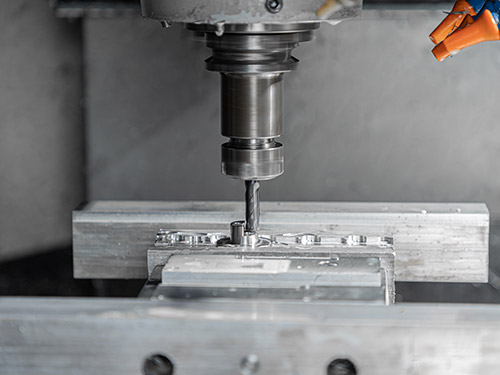

Winmi's CNC Milling Capabilities

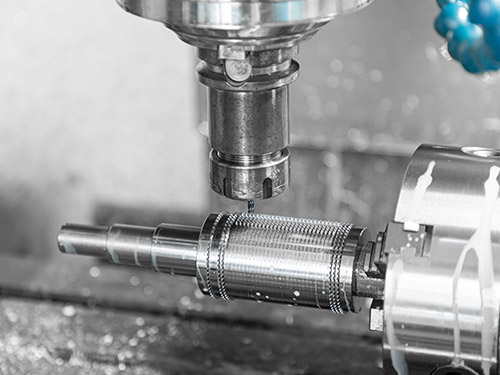

Whether it’s a low-volume run of 1 to 10 pcs or large-volume runs of over 1,000 pcs, our CNC milling service has got all your projects covered. Supporting 3-axis milling and 4-axis milling, we can cut out simple geometries rapidly by precisely remove the materials and some complex features on request, providing low price and fast speed. The tolerance of our CNC milling can reach at 0.005mm and gets tighter after surface grinding.

Why Choose Winmi's CNC Milling Service

Contact to Choose the Right Milling Capability

Let Winmi help you decide whether you should use the 3-axis or the 4-aixs milling to enhance your ROI.

CNC Milling Materials

All production-grade metals and plastics go through spectrum analysis before processing to ensure the correct use of materials.

Aluminum Stainless Steel Other Steel Brass Copper Taitanium Plastics
Aluminum6082 (3.2315) Steel Stainless 304(1.4301) SS400(1.0037) BrassC3560/2.0331 C1020/2.0040  Titan Grade 5(3.7165) PVC
Aluminum6061(3.3206) Steel Stainless 303(1.4305) 1020(1.1151) 59BrassC2800/2.0360 SF-Cu /C1100  Titan Grade 2(3.7164) PP
Aluminum6063 (3.1645) Steel Stainless 316 ( 1.4401) 1045(1.1191) H65Brass CuZn39PB3/2.0401 C5210/2.1030 3.7134 PC
Aluminum5052 (3.3523) Steel Stainless 316L (1.4404) 40Cr/1.7035 C5191/5190/2.1020 T-TU2 PE
Aluminum5183( 3.3547) Steel stainless 420J2 (1.4034) 4140(1.7225) C6280/6300/2.0966 T-V13CA Polymethyl methacrylate – acrylic(PMMA – Acrylic)
Aluminum5082 (3.3547) Steel – Stainless 440 (1.4112) 12L13(1.0718) Ti-6Al-6V-2Sn DERLIN
Aluminum2024 (3.3535) Steel – Stainless 17-4PH (1.4542) 38CrMoAL(1.8509) ABS/Acrylonitrile Butadiene styrene
Aluminum7075(3.4365) Steel – Stainless 430F (1.4104) SK3(1.1645) PTFE
O1(1.2510) BAKELITE
O2(1.2842) Polyether ether ketone (PEEK)
P20(1.2311) PA6 + 30% GF
D2(1.2379) PA66 + 30% GF
A2(1.2363) Nylon 6
E52100(1.3505) Polycarbonate + 30% Glass fill(PC + 30 % GF)
High-density polyethylene(HDPE, PEHD)

CNC Milling Surface Finishes

Harden your parts, change the surface roughness, or make your parts resistant to oxygen and durable under extreme conditions.

CNC Milling Tolerances

The table below summarizes the standard tolerances of the parts. Tolerances up to .0002” (0.005mm) are available upon request and on a case-by-case basis.



General Tolerances to DIN ISO 2768
• The latest DIN standard sheet version applies to all parts made to DIN standards.
• Variations on dimensions without tolerance values are according to “DIN ISO 2768- mk”.
GENERAL TOLERANCES FOR LINEAR AND ANGULAR DIMENSIONS (DIN ISO 2768 T1)

Part Size/Dimension Tolerance Angularity
0.5 up to 3 ±0.05 up to 10 (±1°)
over 3 up to 6 ±0.05 over 10 up to 50  (±0º30′)
over 6 up to 30 ±0.1 over 50 up to 120 (±0º20′)
over 30 up to 120 ±0.15 over 120 up to 400 (±0º10′)
over 120 up to 400 ±0.2 over 400 (±0º5′)
over 400 up to 1000 ±0.3
over 1000 up to 4000 ±0.5

Inspection Reports Upon Request

Winmi provides samples with free inspection reports for medium-and high-volume orders, and the other reports on request.

  • Material Inspection Report
  • Full Inspection Report

Customize Your CNC Milling Solution

Materials. Finishing. Quality Assurance. Winmi’s CNC milling service is ready to take all your needs into account.

Showcase of CNC Milling Service Parts

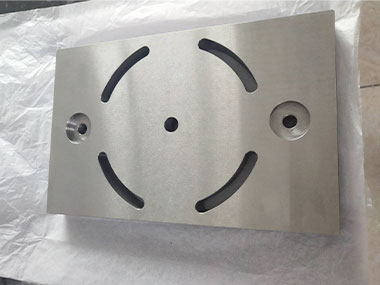

P02 1 S12 pic1 1

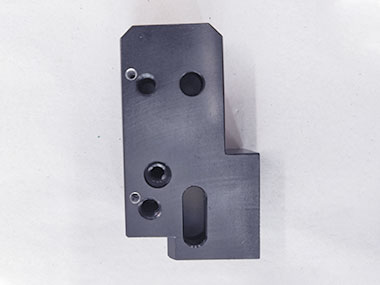

P02 1 S12 pic2 1

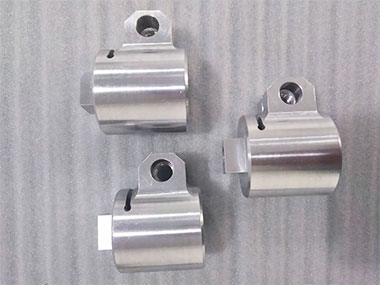

P02 1 S12 pic3 1

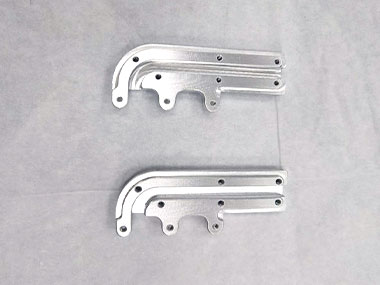

P02 1 S12 pic4

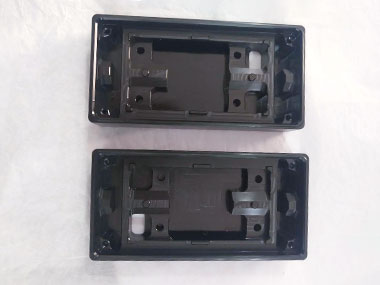

P02 1 S12 pic5

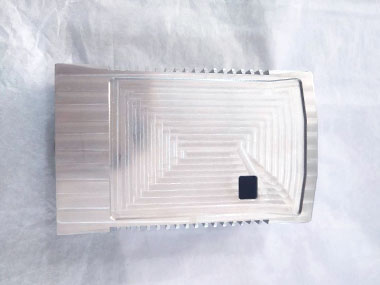

P02 1 S12 pic6

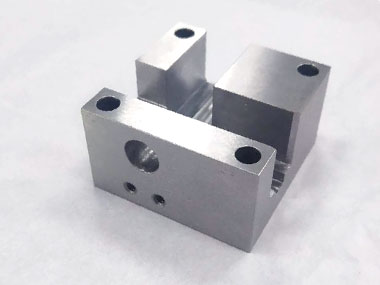

P02 1 S12 pic7

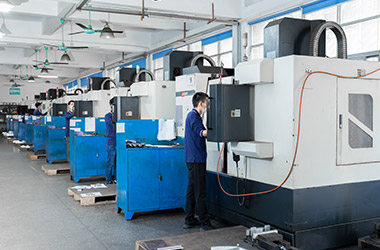

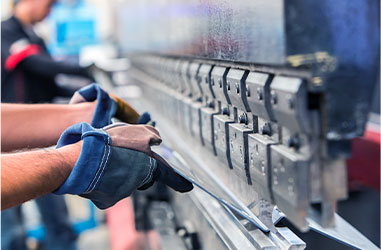

Other Recommended Capabilities

You can always find a suitable option to make your precision parts at a fast speed with less money spent.

Get Your Precision Parts Machined Today

  • Save Budget

  • Accelerate Turnaround

  • Enjoy High Performance
